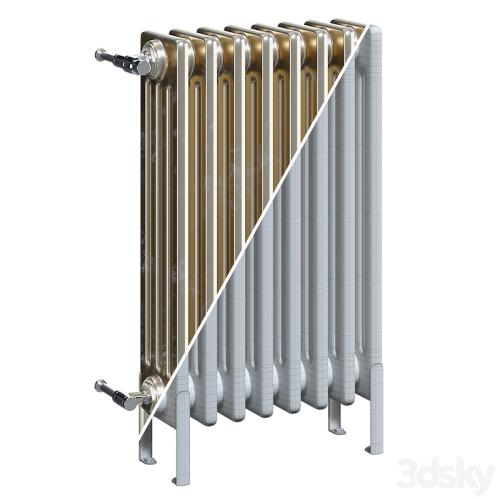

泽尔纳查尔斯顿暖气片 4C
(The model is made for smoothing)

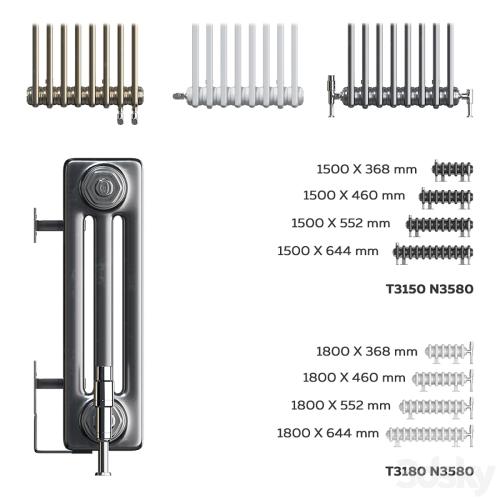

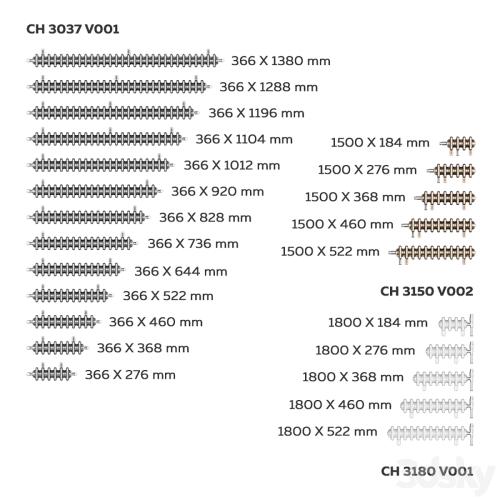

5 types of radiator:
Vertical radiators
1. Zehnder Charleston CH 4150 (Technoline 0325 TL)
- 184 x 1500 x 136 mm - 828 x 1500 x 136 mm
- 276 x 1500 x 136 mm - 920 x 1500 x 136 mm
- 368 x 1500 x 136 mm - 1012 x 1500 x 136 mm
- 460 x 1500 x 136 mm - 1104 x 1500 x 136 mm
- 552 x 1500 x 136 mm - 1196 x 1500 x 136 mm
- 644 x 1500 x 136 mm - 1288 x 1500 x 136 mm
- 736 x 1500 x 136 mm - 1380 x 1500 x 136 mm
2. Zehnder Charleston CH 4180 (RAL 9016 white)
- 184 x 1800 x 136 mm - 828 x 1800 x 136 mm
- 276 x 1800 x 136 mm - 920 x 1800 x 136 mm
- 368 x 1800 x 136 mm - 1012 x 1800 x 136 mm
- 460 x 1800 x 136 mm - 1104 x 1800 x 136 mm
- 552 x 1800 x 136 mm - 1196 x 1800 x 136 mm
- 644 x 1800 x 136 mm - 1288 x 1800 x 136 mm
- 736 x 1800 x 136 mm - 1380 x 1800 x 136 mm

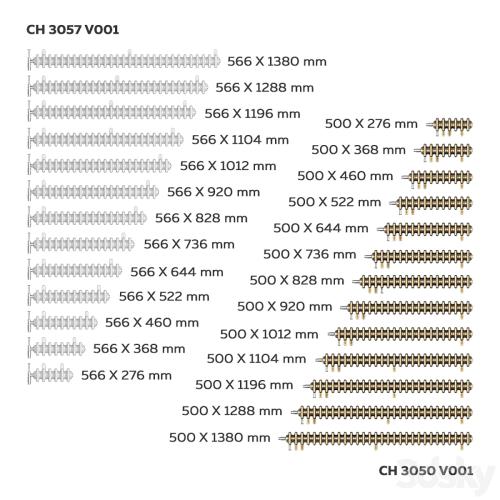

Tubular radiators
3. Zehnder Charleston CH 4057 (0328 TL)
- 184 x 566 x 136 mm - 828 x 566 x 136 mm
- 276 x 566 x 136 mm - 920 x 566 x 136 mm
- 368 x 566 x 136 mm - 1012 x 566 x 136 mm
- 460 x 566 x 136 mm - 1104 x 566 x 136 mm
- 552 x 566 x 136 mm - 1196 x 566 x 136 mm
- 644 x 566 x 136 mm - 1288 x 566 x 136 mm
- 736 x 566 x 136 mm - 1380 x 566 x 136 mm
4. Zehnder Charleston CH 4019 (RAL 9016 white, black)
- 184 x 200 x 136 mm - 828 x 200 x 136 mm
- 276 x 200 x 136 mm - 920 x 200 x 136 mm
- 368 x 200 x 136 mm - 1012 x 200 x 136 mm
- 460 x 200 x 136 mm - 1104 x 200 x 136 mm
- 552 x 200 x 136 mm - 1196 x 200 x 136 mm
- 644 x 200 x 136 mm - 1288 x 200 x 136 mm
- 736 x 200 x 136 mm - 1380 x 200 x 136 mm
5. Zehnder Charleston CH 4050 (Technoline 0325 TL)
- 184 x 500 x 136 mm - 828 x 500 x 136 mm
- 276 x 500 x 136 mm - 920 x 500 x 136 mm
- 368 x 500 x 136 mm - 1012 x 500 x 136 mm
- 460 x 500 x 136 mm - 1104 x 500 x 136 mm
- 552 x 500 x 136 mm - 1196 x 500 x 136 mm
- 644 x 500 x 136 mm - 1288 x 500 x 136 mm
- 736 x 500 x 136 mm - 1380 x 500 x 136 mm
Manufacturer Website: https://zehnder.market/
